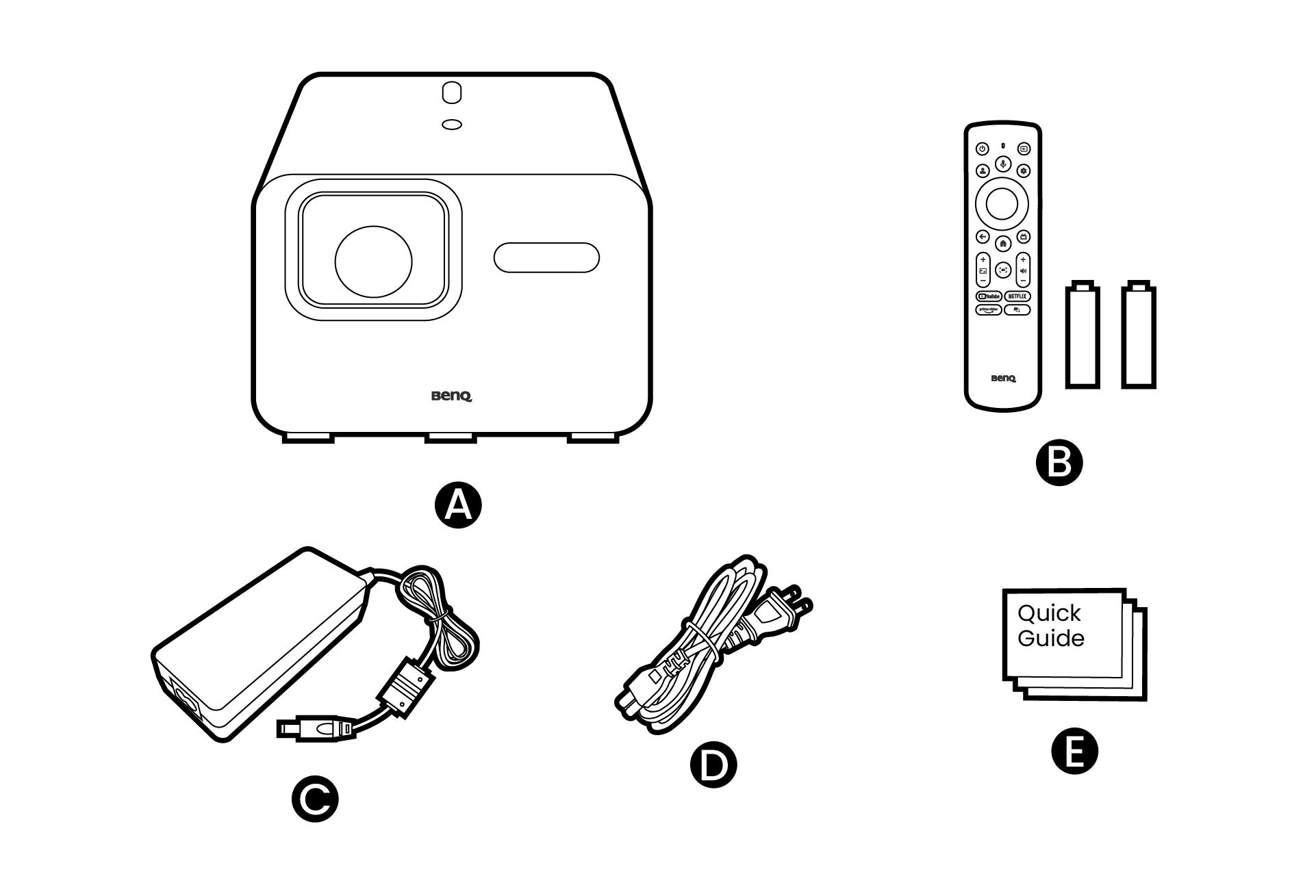

A. 投影机｜B.  遥控器

C. 电源适配器｜D.电源线｜E. 用户说明书

Illustration of package contents
Illustration of package contents

Note

此处展示的图片可能与实际内容会因您所在地区而存在差异。

内容
安装
实用app
视频连接
倒置投影
吊装
安装
实用app
视频连接
倒置投影
吊装

安装

1.

（电池供应情况可能因地区而异）

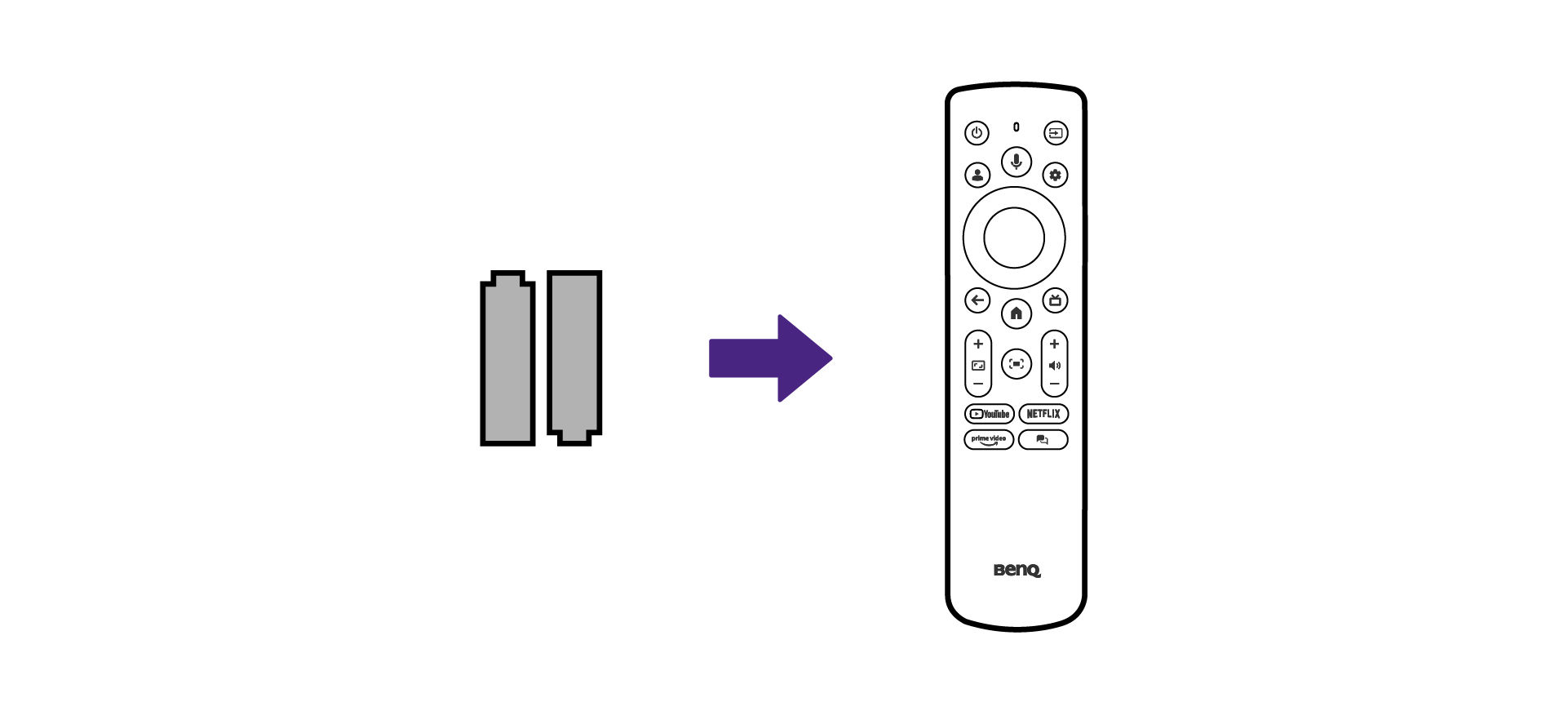

Install the remote control's batteries.
Install the remote control's batteries.

2.

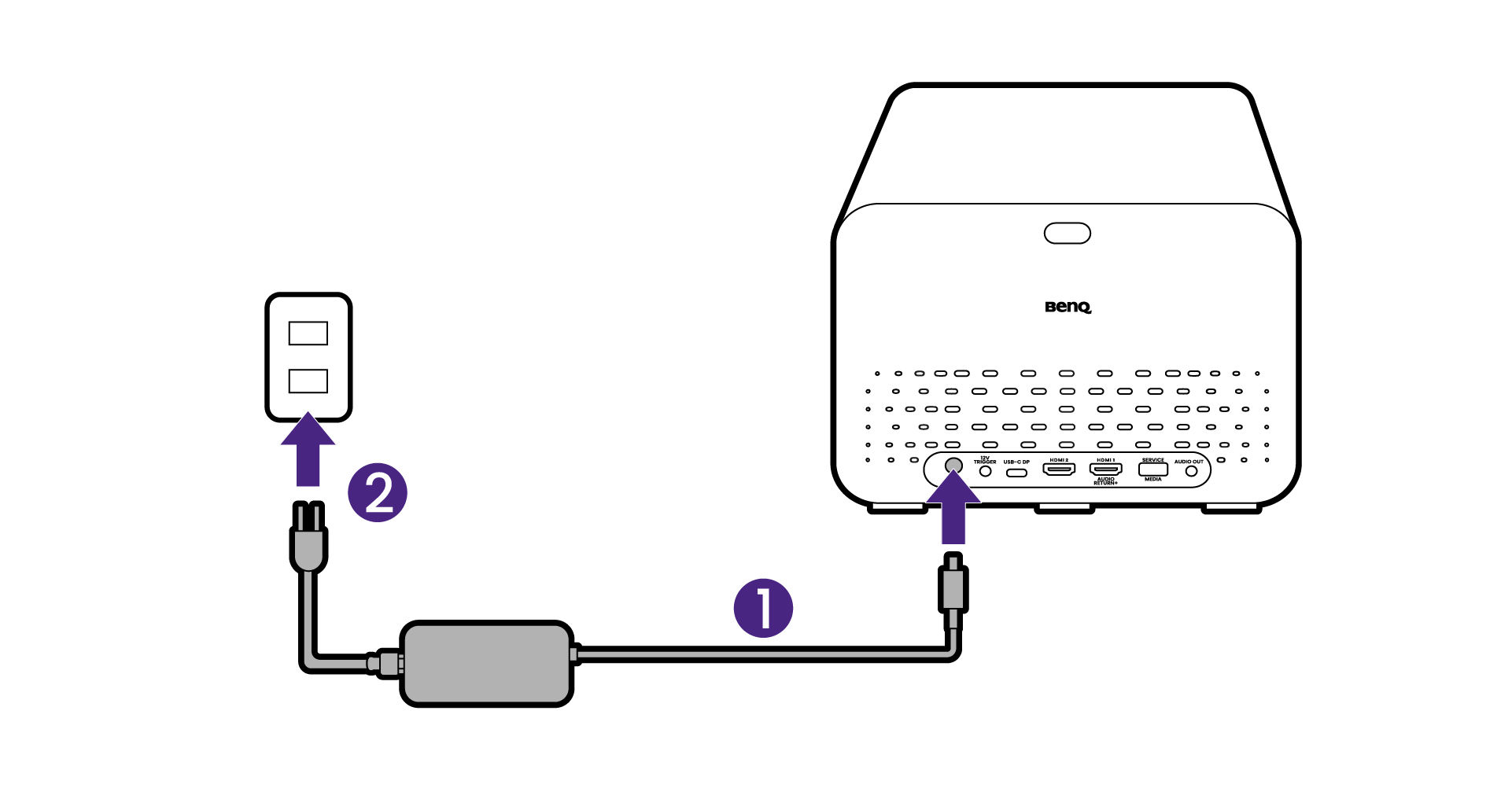

Connect power to the projector.
Connect power to the projector.

3.

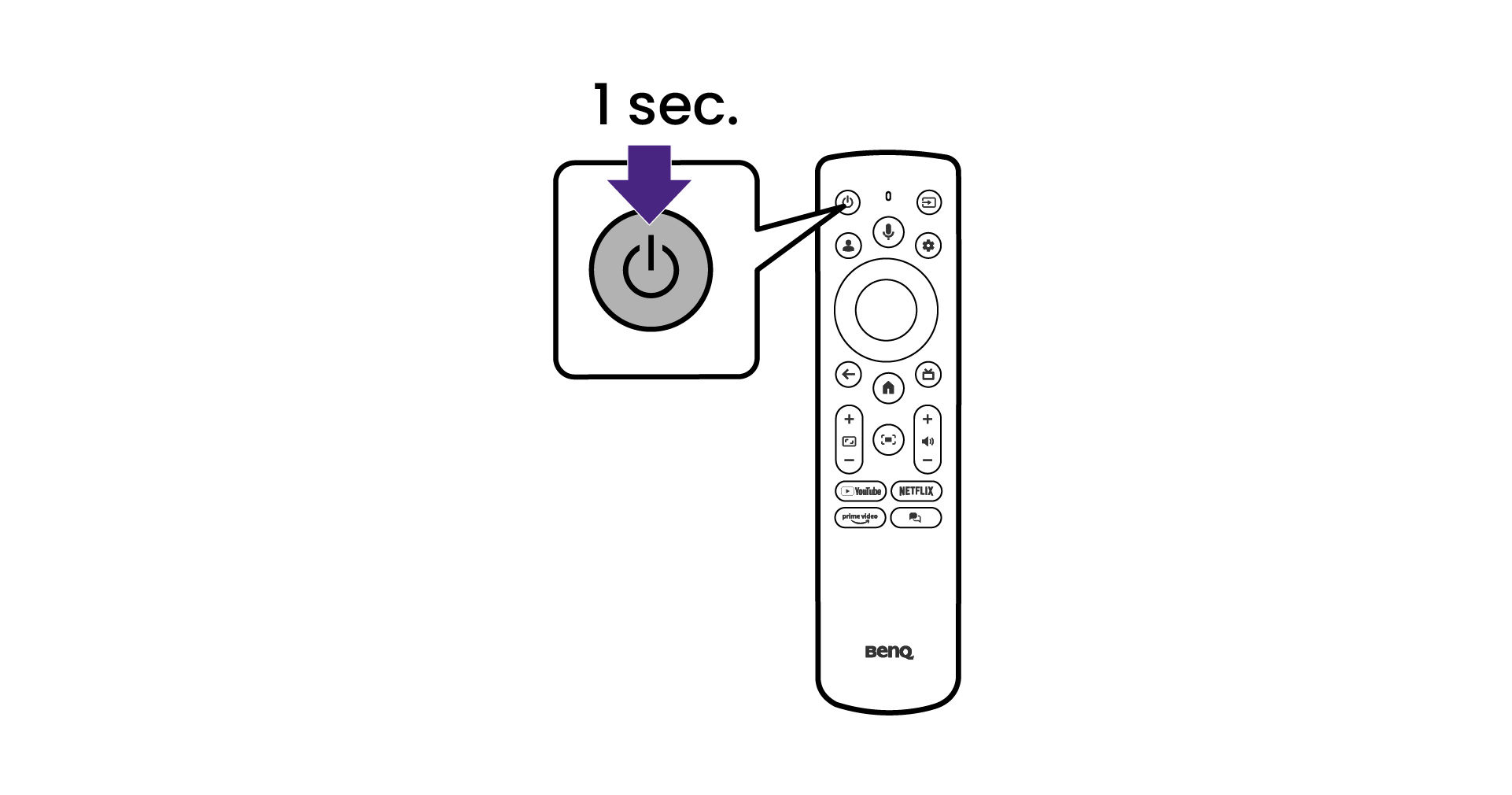

Press and hold the power button on the projector for 1 second or press the power button on the remote control.
Press and hold the power button on the projector for 1 second or press the power button on the remote control.

4.

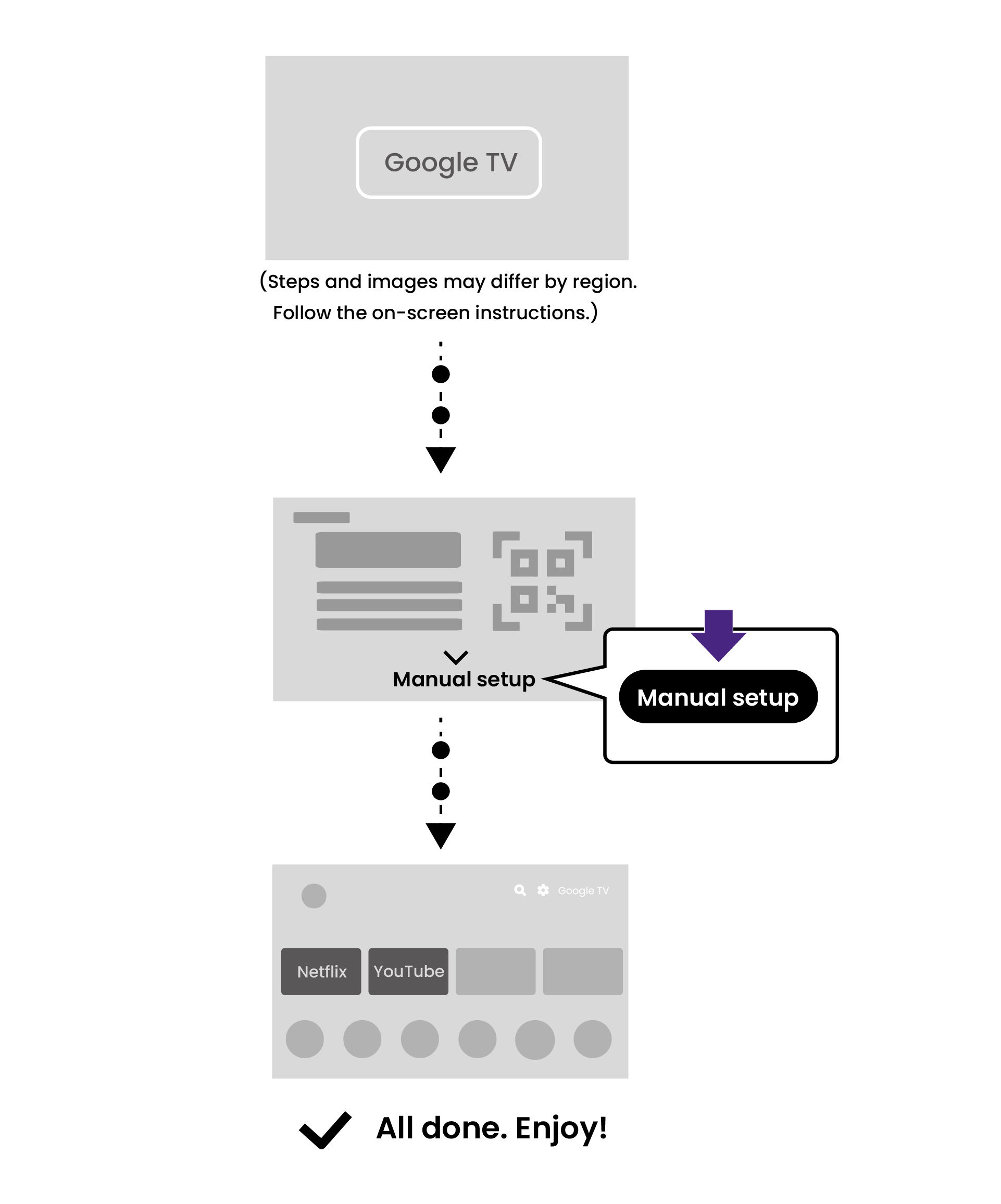

完成设置

（屏幕显示内容可能因地区而异）

Complete the initial setup.
Complete the initial setup.

实用app

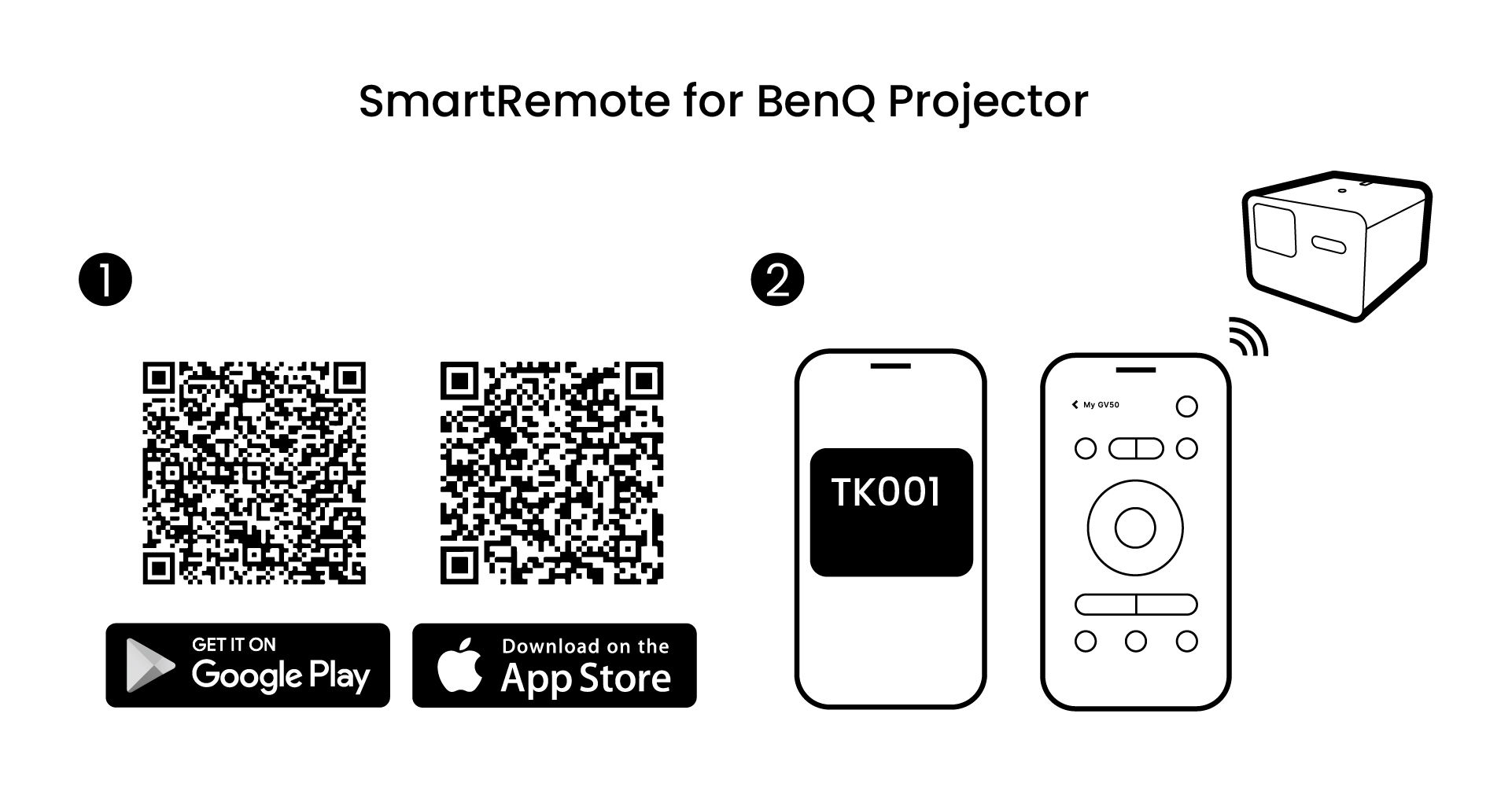

Download SmartRemote for BenQ Projector app to your mobile device.
Download SmartRemote for BenQ Projector app to your mobile device.

视频连接

1.

（视频线缆需另行购买）

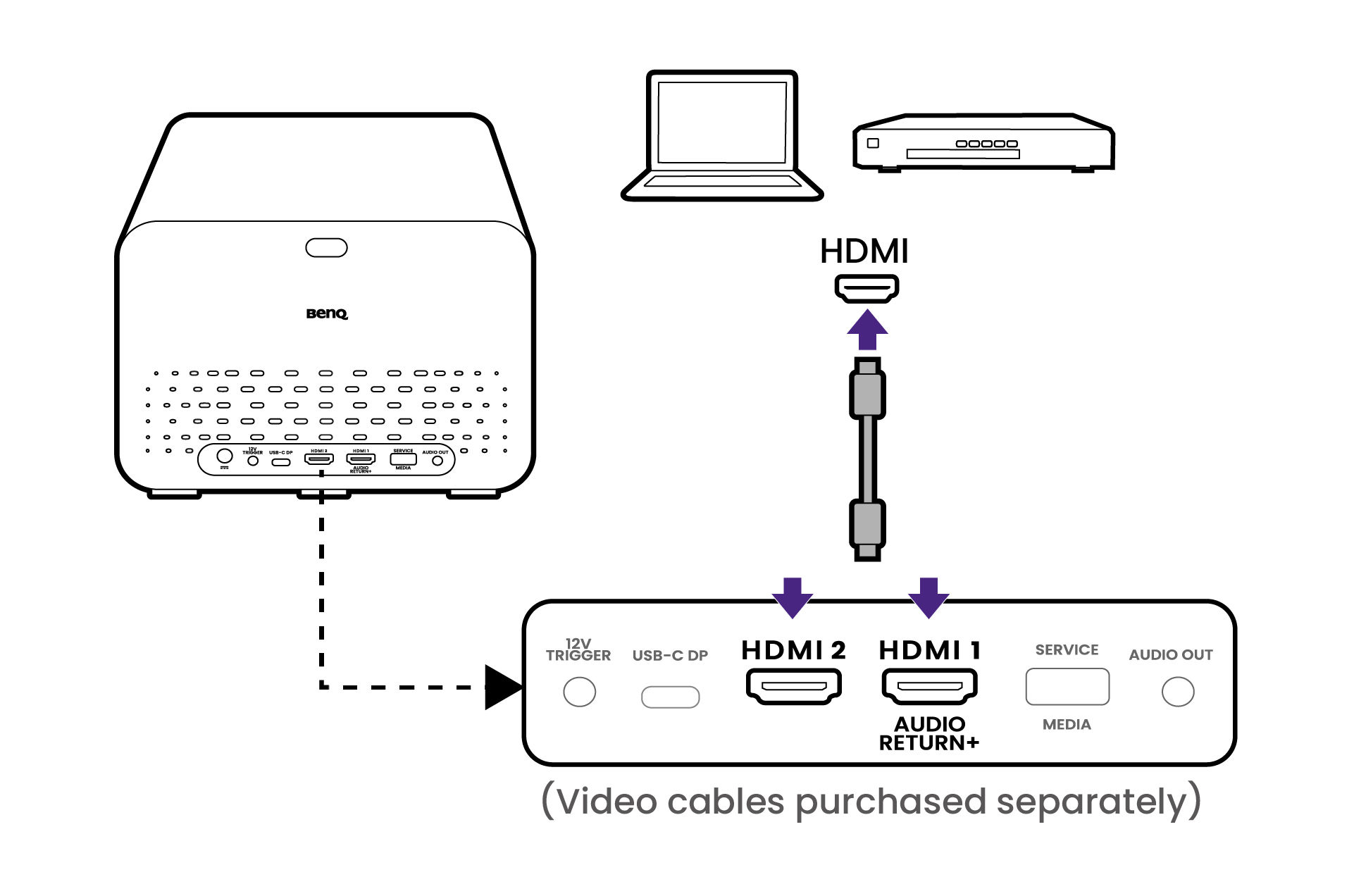

Connect video source to the projector via HDMI.
Connect video source to the projector via HDMI.

2.

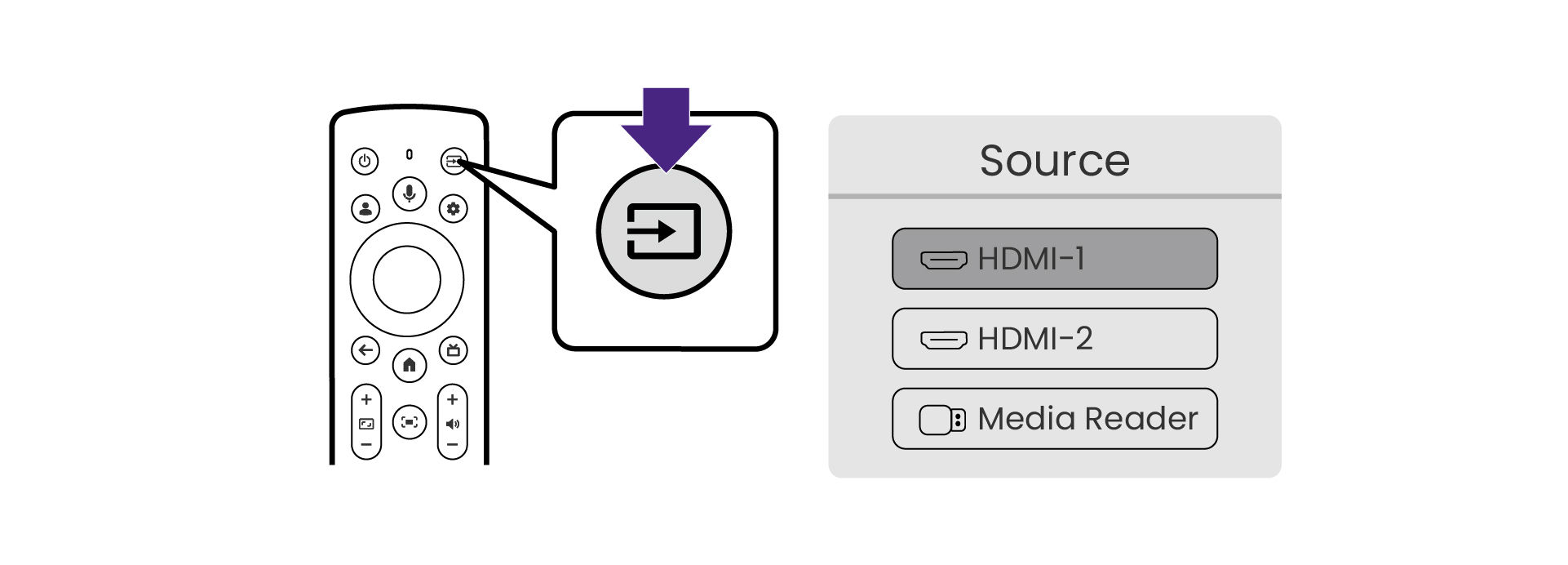

Press the source key on the remote control to switch to the connected video source.
Press the source key on the remote control to switch to the connected video source.

倒置投影

（内置可调节支脚）

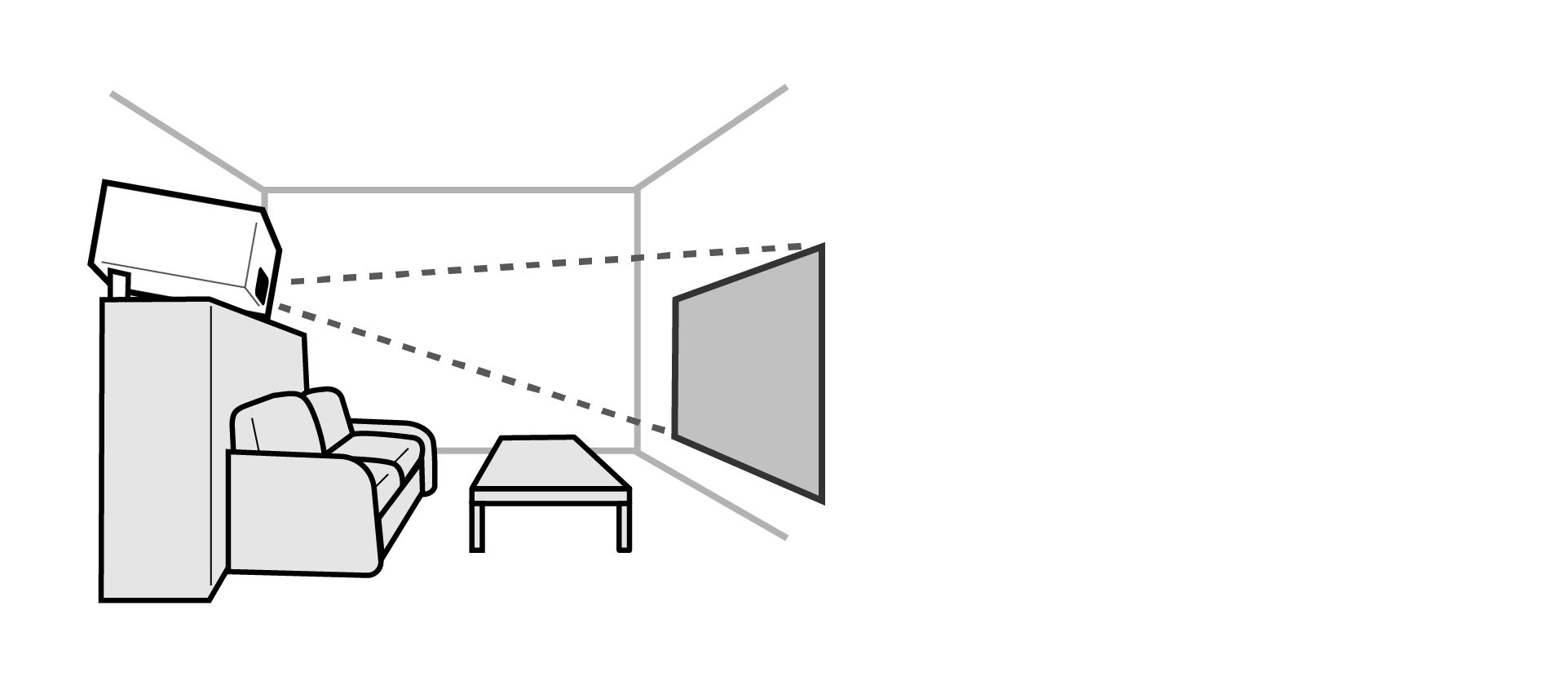

Upside down projection with the built-in adjustable foot.
Upside down projection with the built-in adjustable foot.

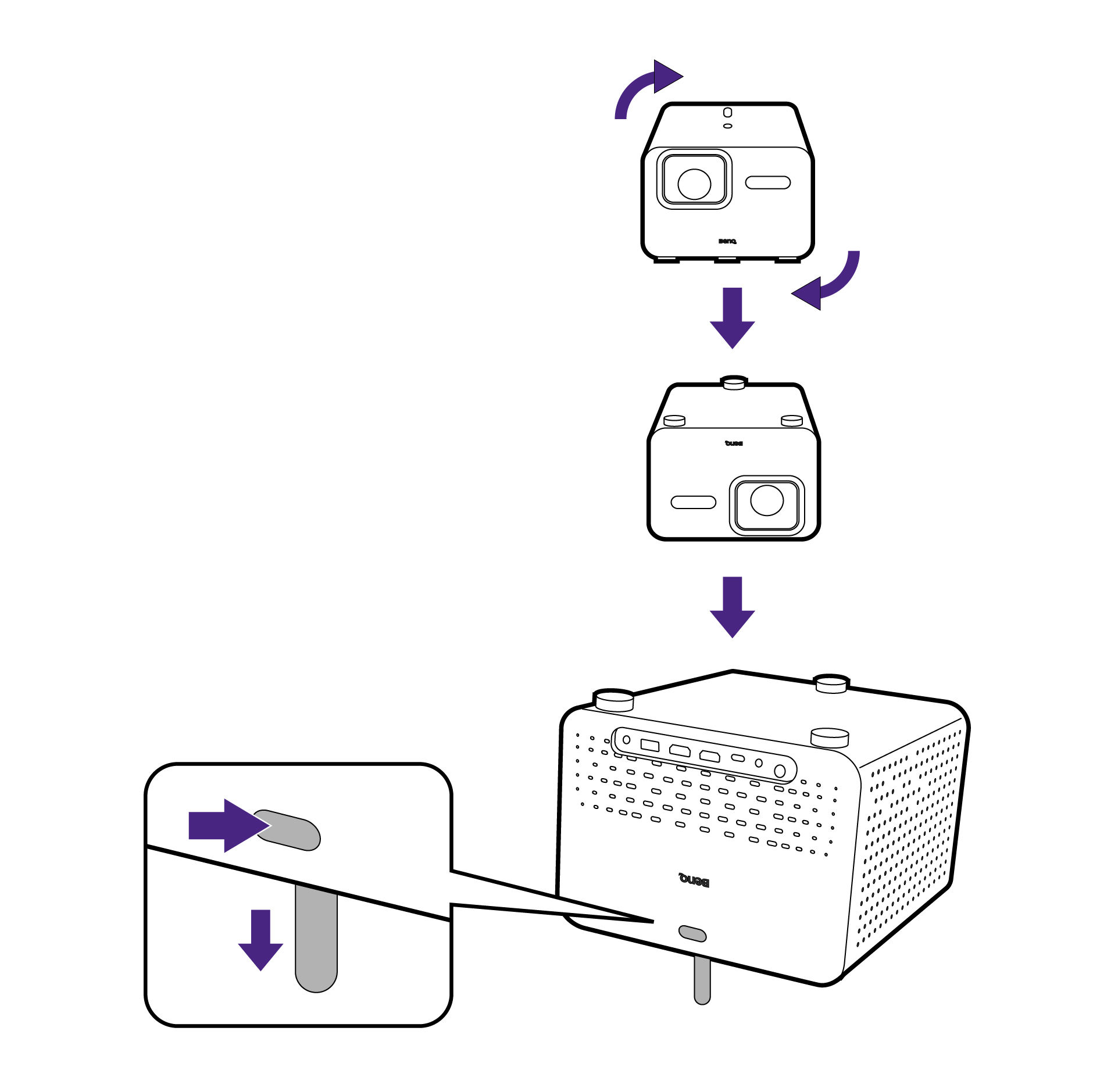

Place the projector upside down and push the adjustable foot button.
Place the projector upside down and push the adjustable foot button.

正面投影

螺丝规格：1/4英寸

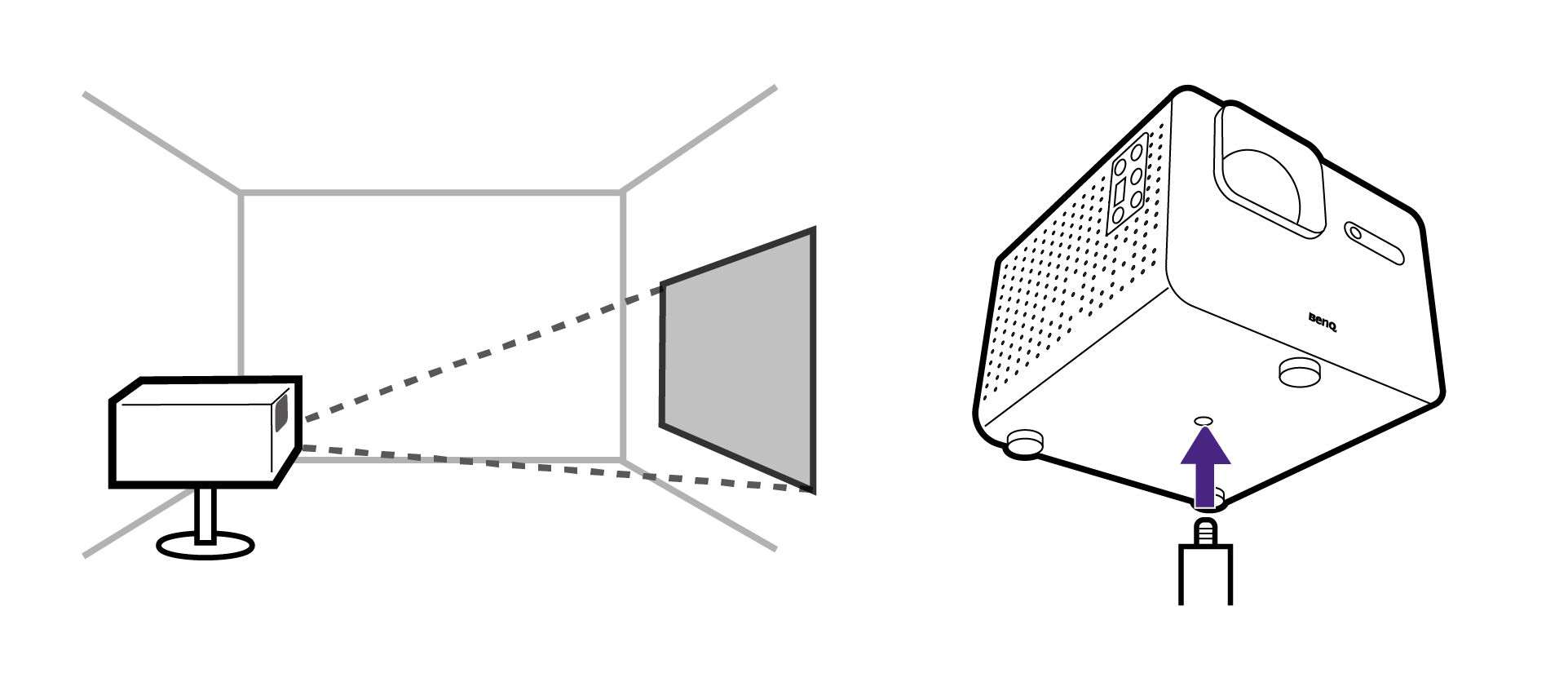

Front projection with a tripod or projector stand purchased separately.
Front projection with a tripod or projector stand purchased separately.

倒置投影（带投影仪支架）

螺丝规格：1/4英寸

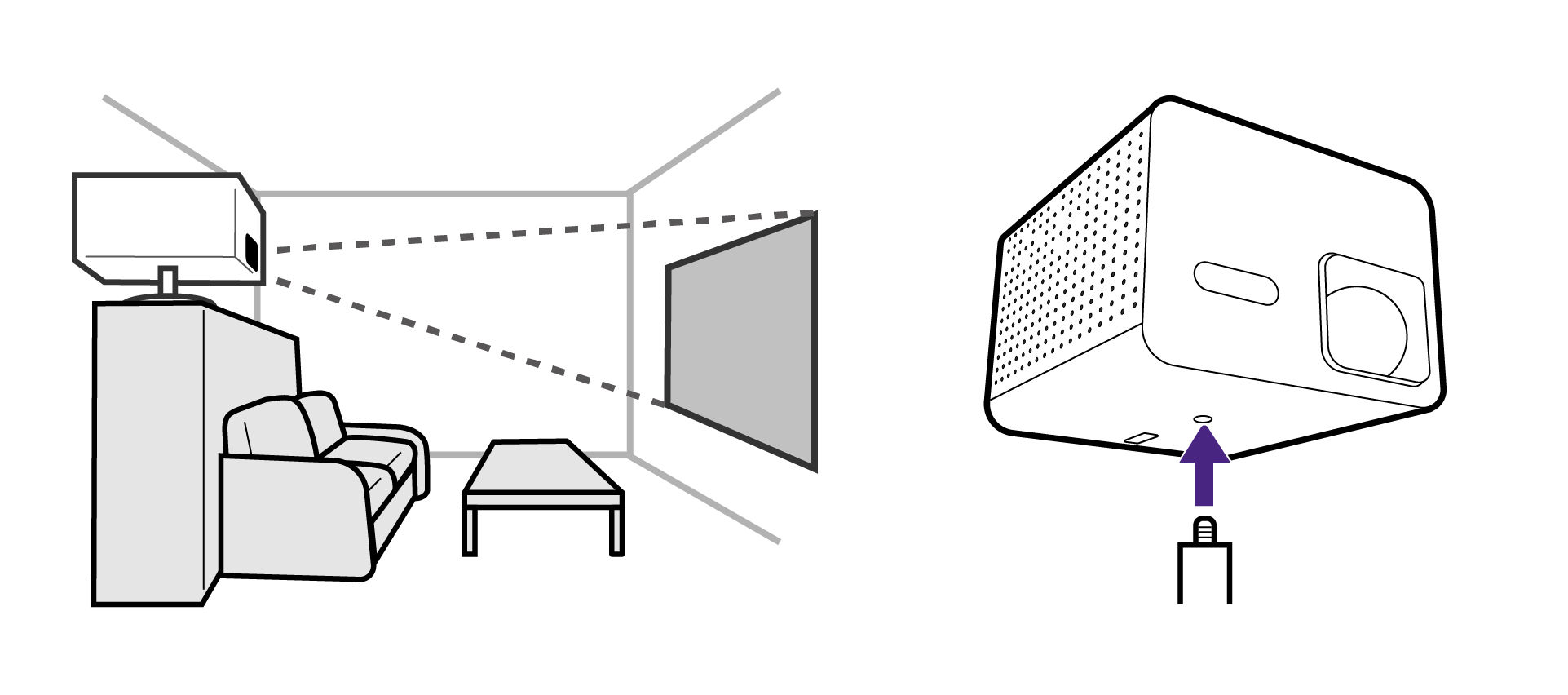

Upside down projection with a tripod or projector stand purchased separately.
Upside down projection with a tripod or projector stand purchased separately.

吊装

螺丝规格：M4

适配明基天花板支架型号：CM00G3

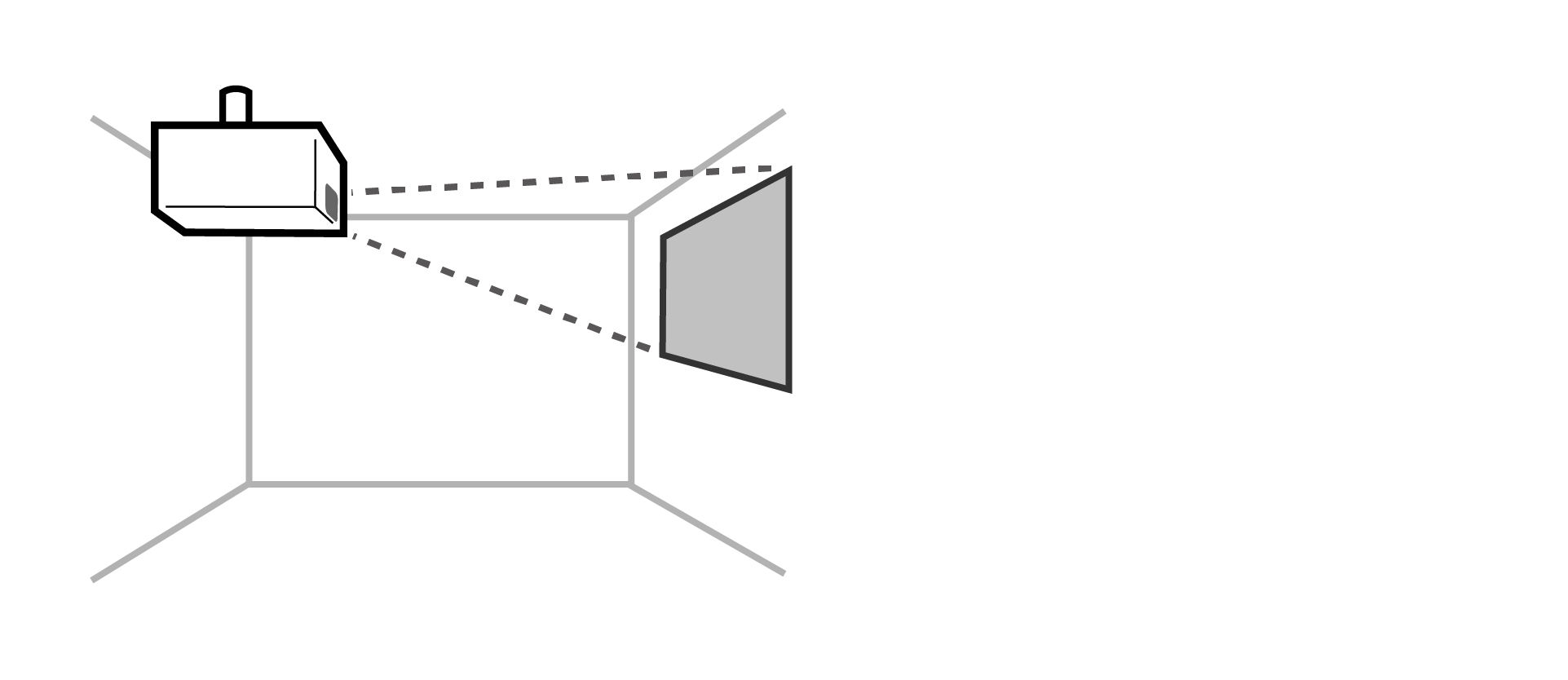

The projector can be ceiling mounted.
The projector can be ceiling mounted.

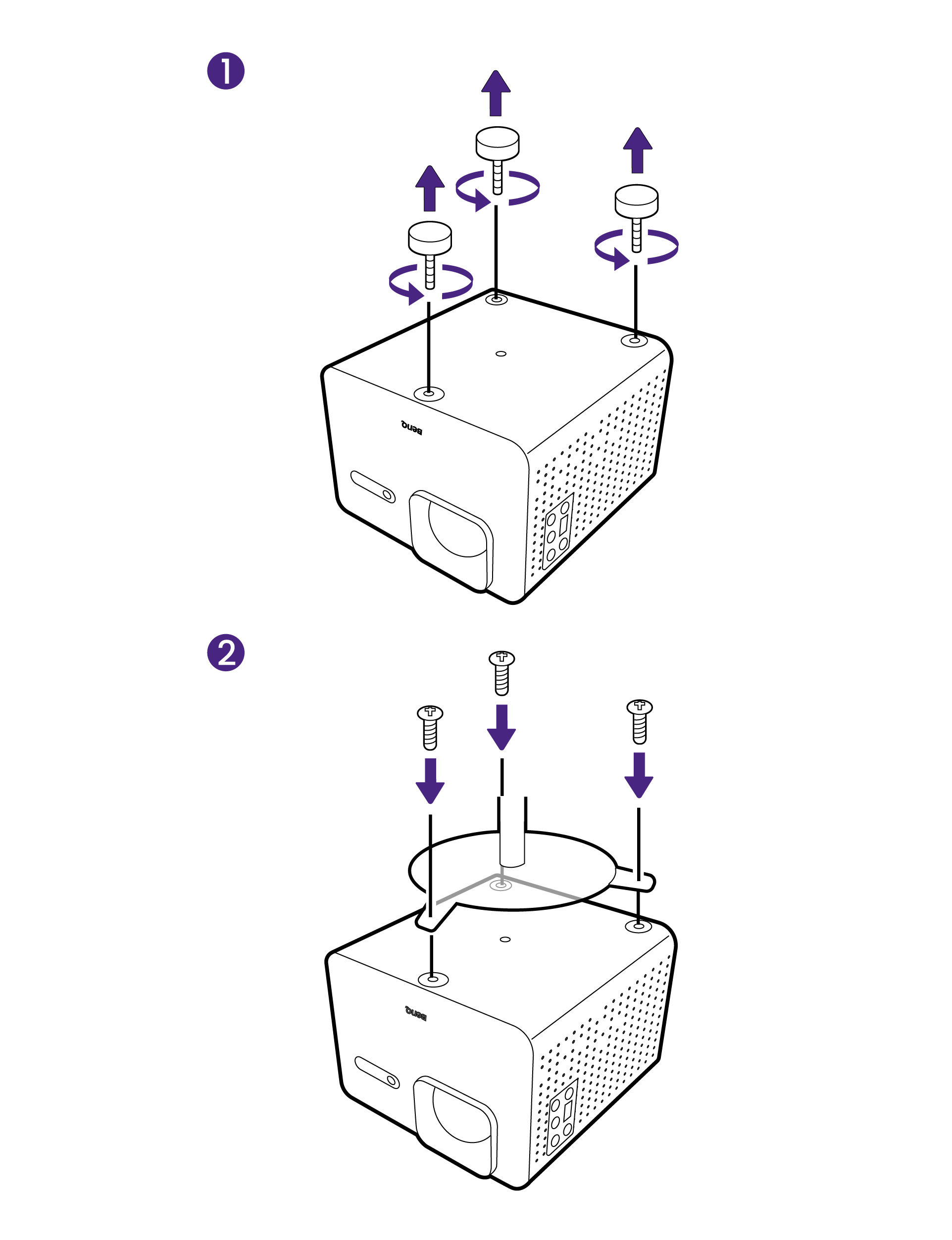

Release the adjsutable feet on the bottom ot the projector to access the ceiling mount screw holes. Install the projector onto a ceiling mount.
Release the adjsutable feet on the bottom ot the projector to access the ceiling mount screw holes. Install the projector onto a ceiling mount.
