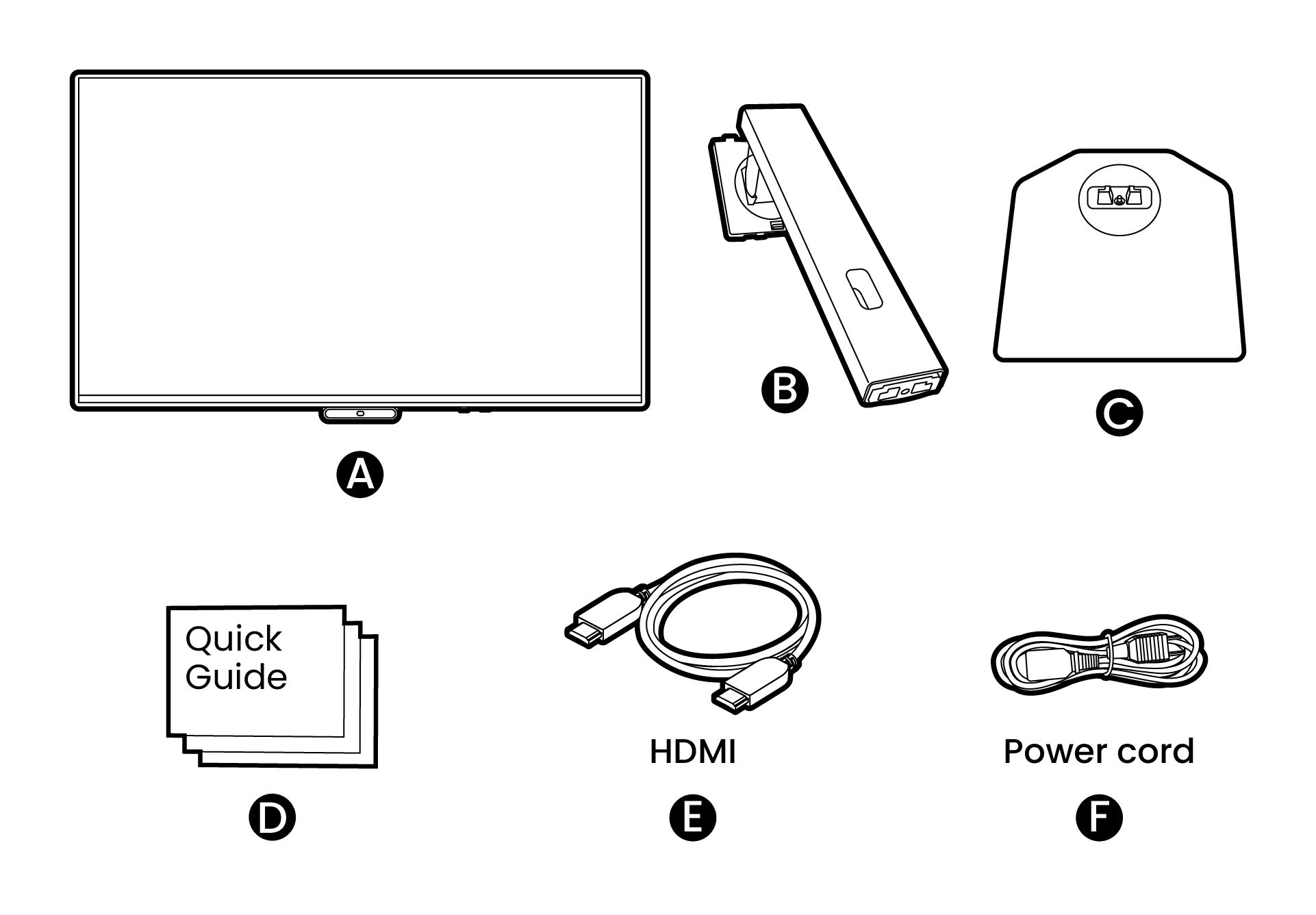

A. LCD 显示器｜B. 显示器支架｜C. 显示器底座

D. 使用手册    ｜E. HDMI 线      ｜F.电源线

Illustration of package contents
Illustration of package contents

提示

可能因不同地区提供的产品有所不同而导致与图片内容有所差异。

内容
设置
热键（视觉优化器热键）
角度调整
设置
热键（视觉优化器热键）
角度调整

设置

1.

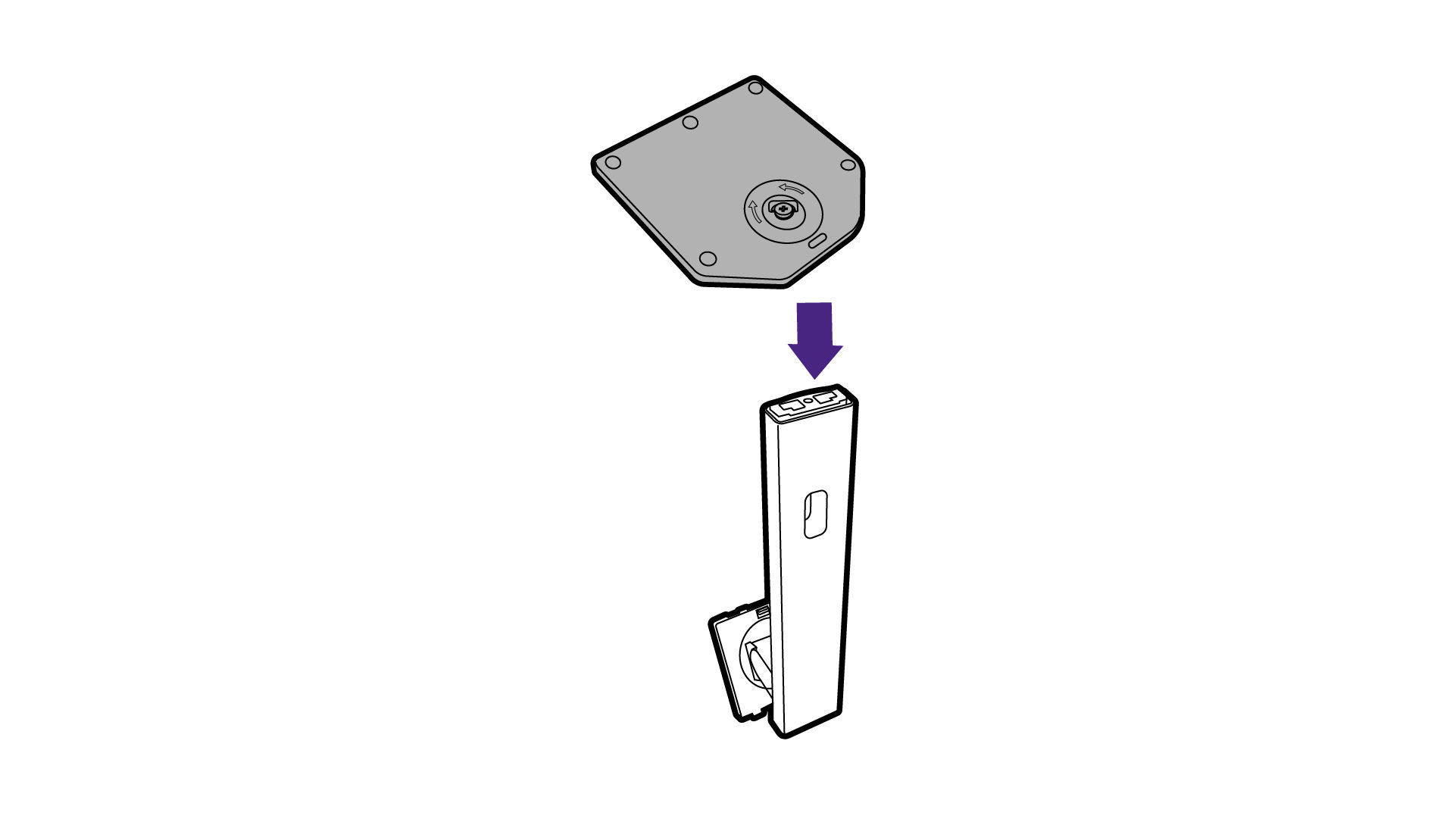

Attach the monitor stand to the monitor base as illustrated.
Attach the monitor stand to the monitor base as illustrated.

2.

Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.
Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.

3.

Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.
Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.

4.

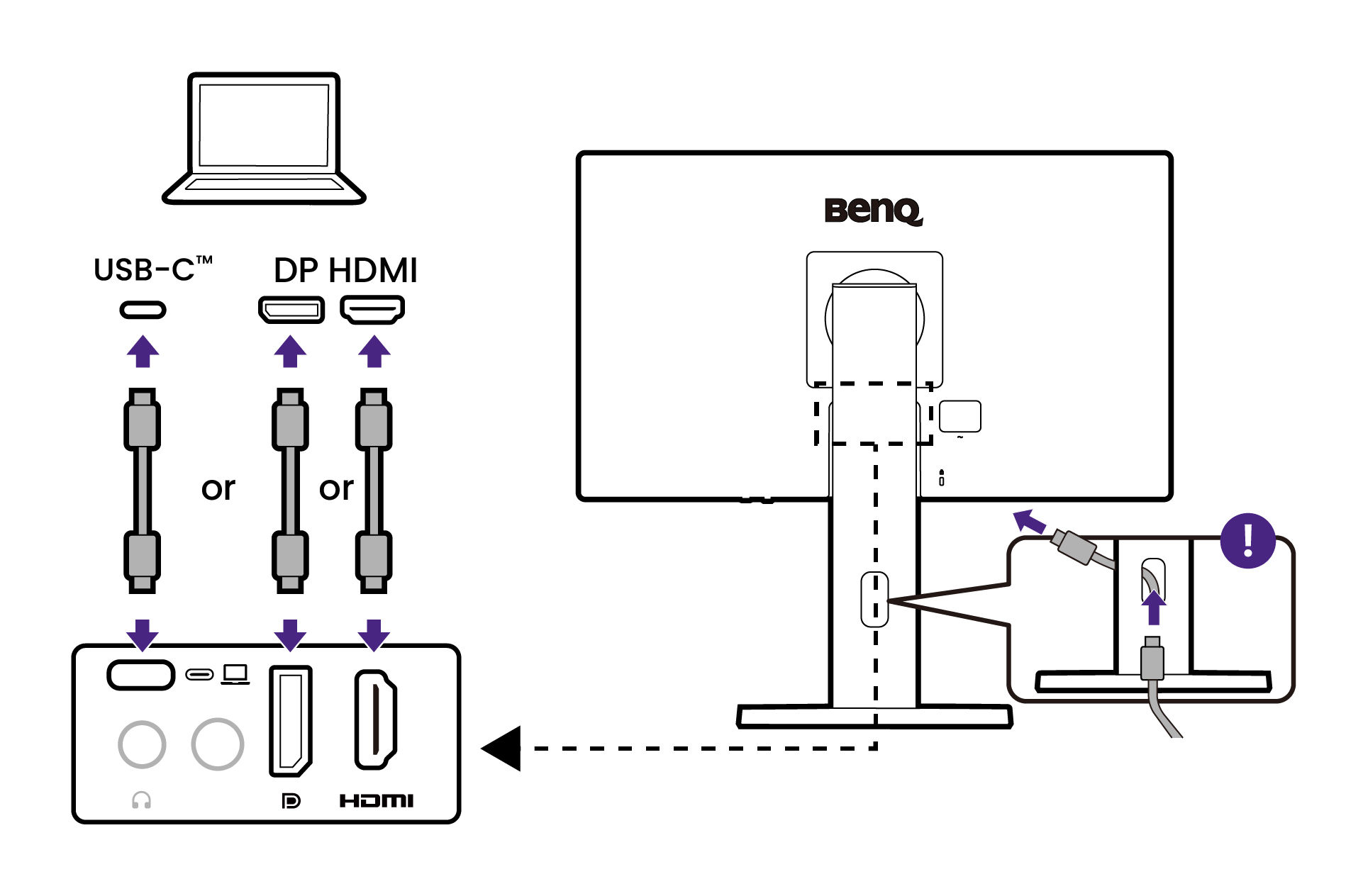

Connect the PC video cable.
Connect the PC video cable.

5.

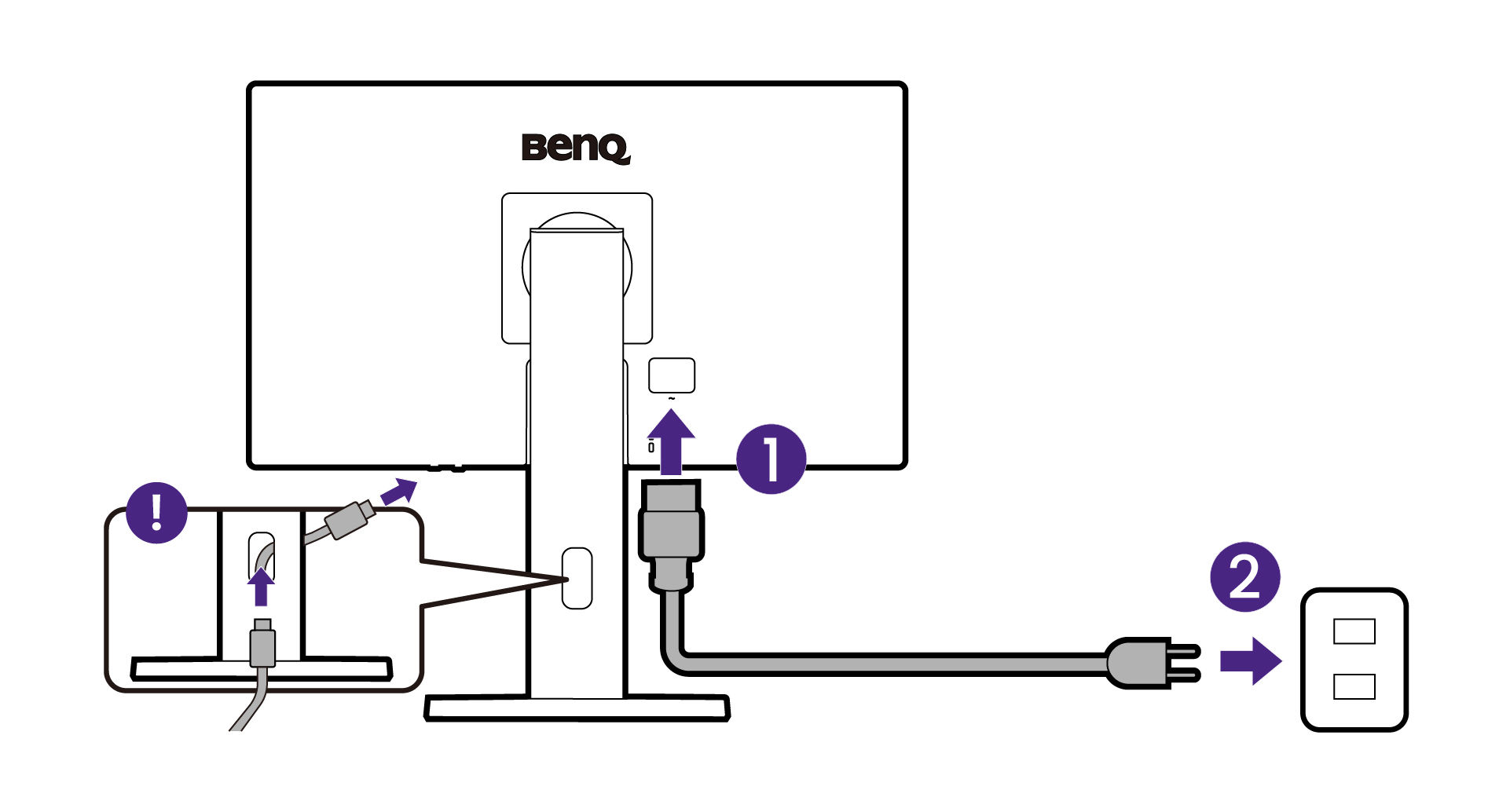

Connect the power.
Connect the power.

6.

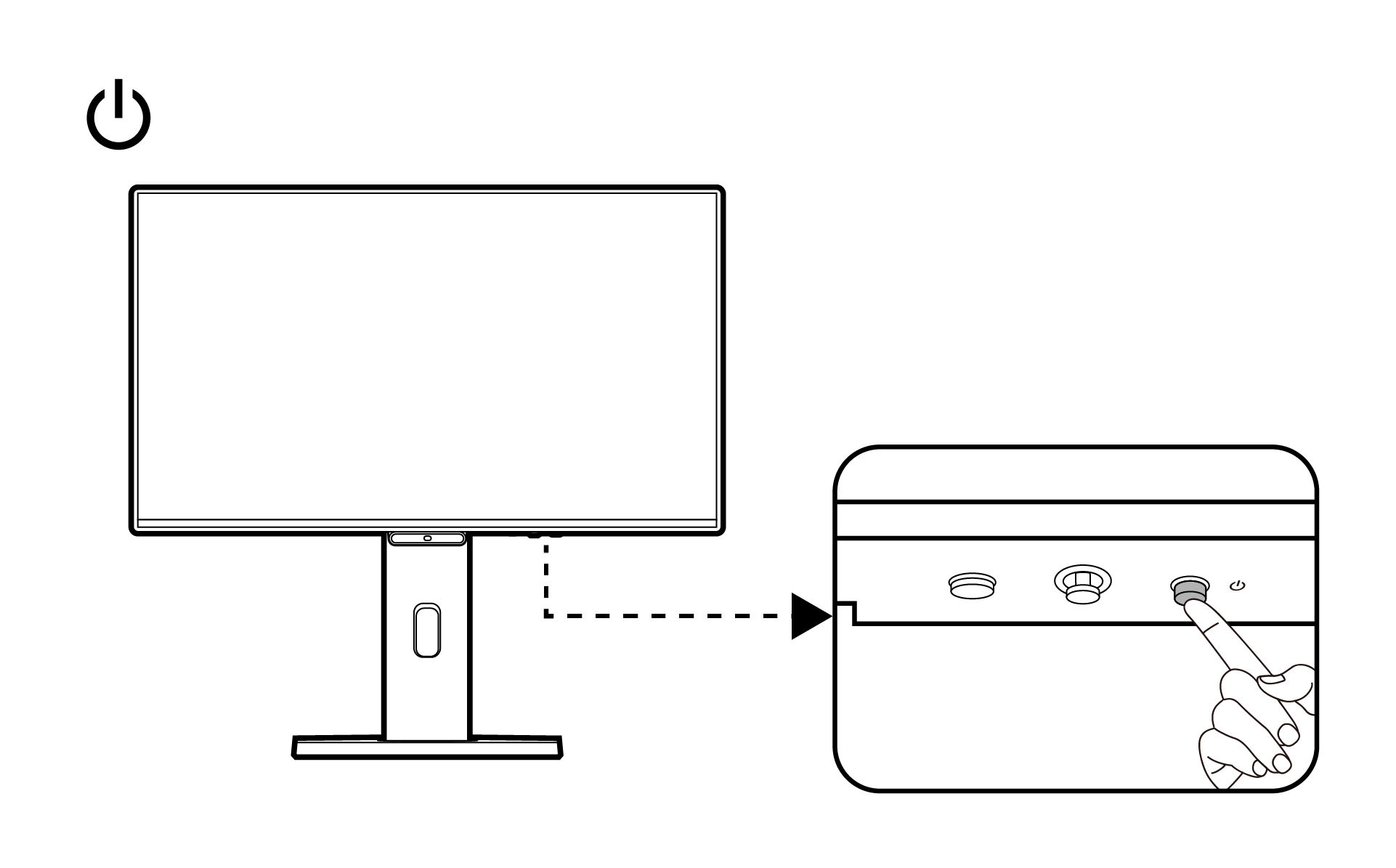

Turn-on the power.
Turn-on the power.

热键（视觉优化器热键）

全天候护眼

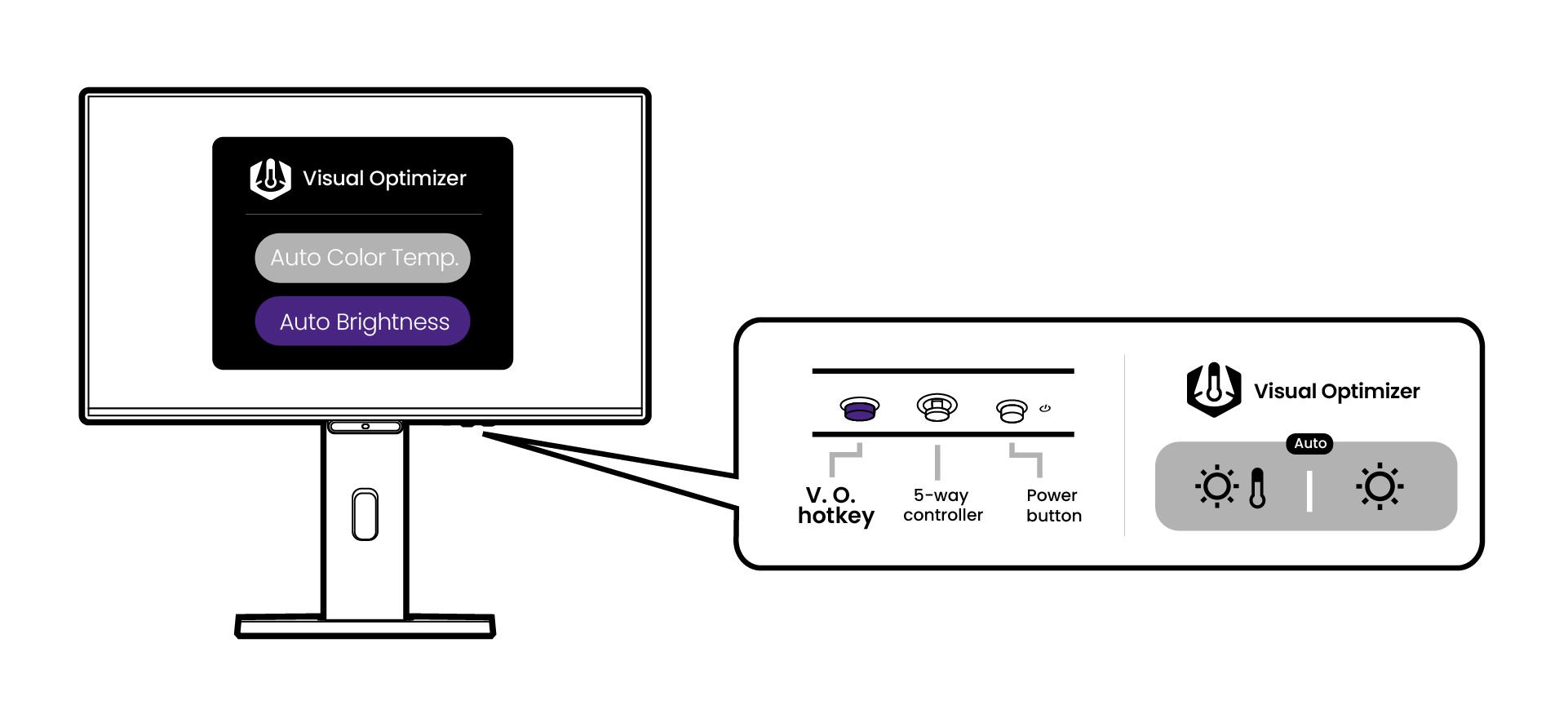

Press the V. O. Hotkey to adjust brightness and color temperature automatically.
Press the V. O. Hotkey to adjust brightness and color temperature automatically.

角度调整

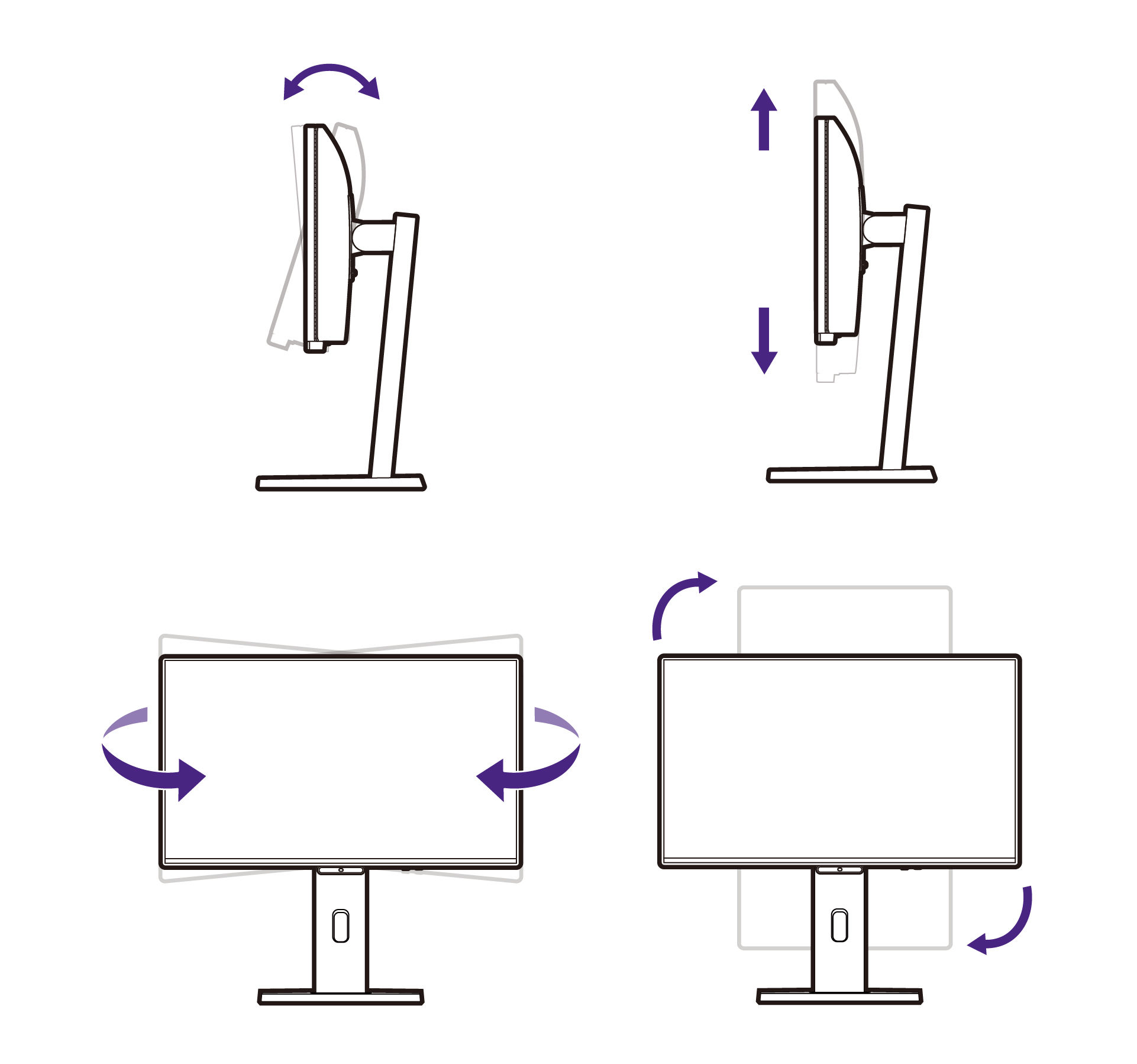

Adjust the viewing angle.
Adjust the viewing angle.
